S600-4 WIRE DRAWING MACHINE WITH UPPER TRANSMISSION + COILER (INPUT 6.00mm OUTPUT 3.40 mm)
Product Description
:
This Facility yields high-quality products with specially designed strong, low-maintenance structure of S Series Multi-Block Dry Drawing Wire Drawing Machines with Upper Transmission.
Required Field:10 mt * 2 mt
Total Electricity Consumption:45 kw 380 volt
Origin:TURQUE
Capacity:4 m / Munite la Tête de sortie (1000 kg / 8 heures)
Number of Employees:4
Required / Air, Water and Fuel:6 Bar Air Presseure / 200 Lt Munite
Products
WIRE DRAWING MACHINE WITH UPPER TRANSMISSION + COILER (S600-4)
GENERAL FEATURES:
Machine body is easy to carry thanks to its robust structure and centering elements required for assembly of block frames and offers quick installation.
Drawing heads, rolling mill boxes, drive motors, water feeding pipes, return coolant pipes, oil level indicators, safety caps are mounted to the body.
Drawing heads are GGG 70 nodular cast iron.
Drawing belt surface is HARD FILLING coated.
Drawing heads and rolling mill housing are cooled by cooling water.
Motor power depends on the diameter of wire to be drawn and the material structure.
Ac motors are controlled by inverters having torque control release technique.
Power transmission is made by belt and pulleys to specially designed reducers.
Motors are mounted at the back of the body vertically with a mechanism providing easy belt tension.
There is dynamic braking system on each motor for emergency and normal stops.
Safety switches prevent the operation of the machine if the safety locks of the machine are open.  All electrical, electronic components are world-renowned brands. Invertors and switch materials are ABB brand.

TECHNICAL FEATURES:
Machine  Model: S 600-4 TÇM
Block Structure: Vertical Block with Upper Transmission.
Number of Blocks: 4 pcs.
Block Diameter: 600 mm.
Wire Drawing Speed: 4m-8m / Mun
Wire Input Diameter: ø  6,00 – 5,50 mm.
Wire Output  Diameter: ø  4,40 – 3,40 mm.
Engine Power: 22 kw  380   each block. Inverter speed control.
Block  Feature: GGG 70  nodular cast iron.
Block  Coating: Drawing belt HARD FILLING.
Rolling Mill Boxes Adjustment: Right, left.
Rolling Mill Housing Size: Ø 43 x 27 mm.
Drive System: specially designed Helical steel-toothed, with belt and pulley system.
Braking: Pneumatic brake.
Block  and Rolling Mill Cooling : with water.
Drawing Direction: from left to right.
Control Panels in Blocks: Machine start button, Machine stop button, brake on/off selector. Emergency stop, preliminary preparation button, Potentiometer.
Main Control Panel:  Standard control  panel.
Average Capacity: ø 3.40 mm  Wire  1000 Kg/Hour.

TECHNICAL DATA:

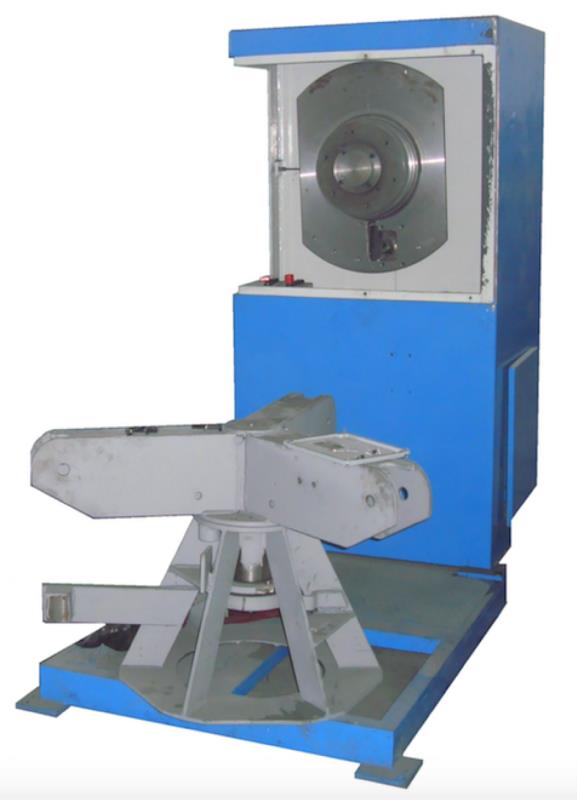

Machine  Model:  S 600 (COİLER)
Number of Drums: 1 pcs.
Drum Diameter: ø 600 mm  ( 60 rockwell hard metal coated).
Wire Coiling Speed: 4 – 8 mt / sec inverter speed controlled.
Motor  Power: 18,5 kw  380  volt. inverter speed control.
Wire Discharge System: goose neck basket rest.
Basket Height:1.200 mm.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
WIRE END OPENING, MACHINE (OPTIONAL) (S001)
The wires can be pulled in the wire drawing machine, crushing the tip of the wire to pass through the mill makes the thinning process.

TECHNICAL DATA:
Number of roller: 2 62 rokvel hardened.
Butter channel dimensions: ø 6-2 mm.
Motor power: 5.5 kW 380 volts.
Note: Our company may make changes in the technical features of the machine when required without prior notice.
Made in Turkey
