The packaging machines fully automatic with servo-controlled are specially designed in order to make three edge glued stick type packages for instant use of a combination of coffee, sugar and milk powder, three in one, ready-made disposable packages, and to pack without manual interference
TECHNICAL FEATURES: Model PRO-8S
Electronic Driver: OMRON Symac NJ
Servo Motors Omron Symac Nj
Omron PID Temperature Controller;
Omron 7 inches
Japanese SMC Pneumatic Components
Other supplies: Shineder German
All Bearing SS 304
Chrome Body S/S 304
Capacity (per min.): 300
Max Weight: 7 g
Min Weight: 3,5 gr
The product length:50 – 140 mm (Adjustable)
Package Diameter:10 mm
Package Flange Width: 17 mm
Installed Electricity Power:10 kw
Average Electricity Power:7 kw
Compressed Air Consumption: 6 bar 200NI/min.
Lines: 6 (More OptionsPlease contact us for)
Width: 1450 mm
Length: 4200 mm
Height: 1500 mm
Min.Bag Size (WidthxLength): 25mm/70mm
Max.Bag Size (WidthxLength): 45mm/150mm
Main Frame: Stainless Steel
Weight(App): 650 kg
Elektric C. Supply V.: 320V / 7Kw
Air Conception: 6 Bar
Roller Inner Diameter: 70-76 mm
Roller Diameter: Max. 300 mm
Filling/Product Grammage: 8 LINES SCREWED POWDER FILLING- WITH SERVOMOTOR CONTROLLED

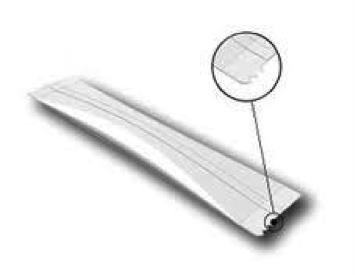

Pack Type:Stick
Note: Our company, if requires, may make changes in technical specifications of machine without prior notice.
Made in Turkey
